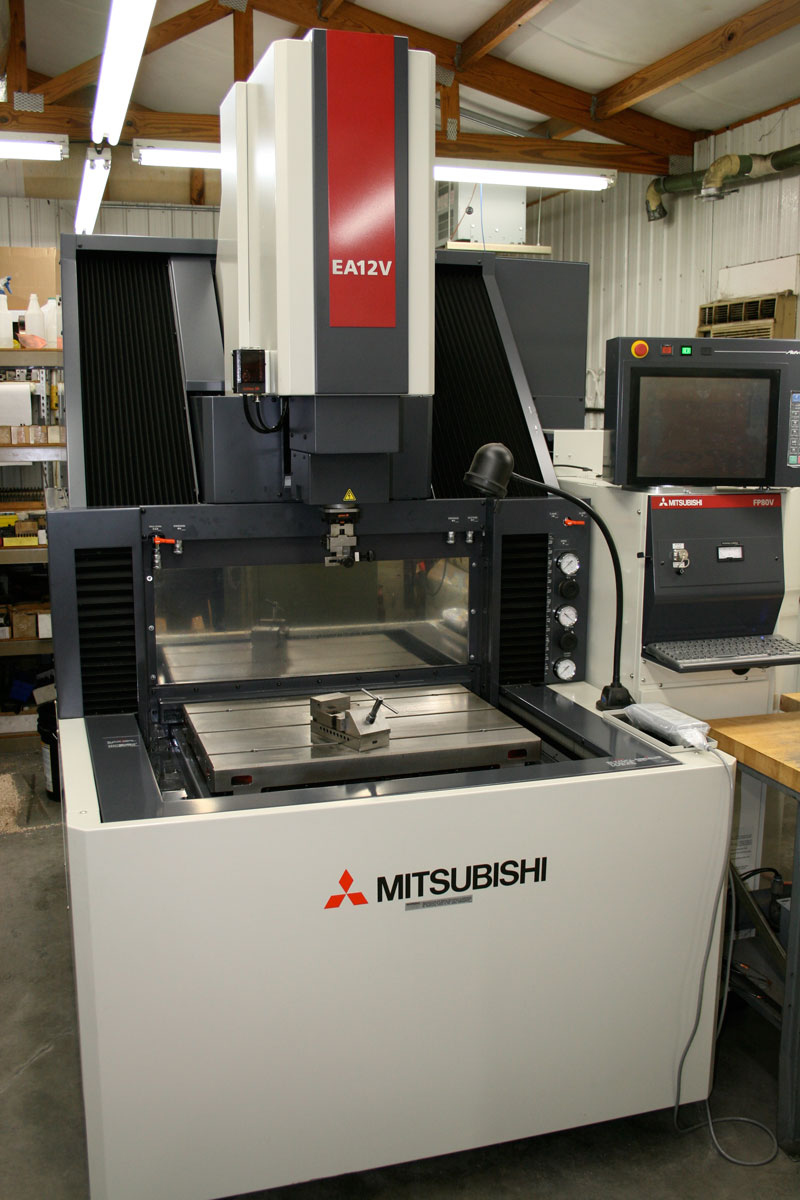

Mitsubishi EA12
SP circuit for machining hard materials
FP100B booster power supply
Micro-voltage power
supply NP circuit (EA8, 121)
Tool exchanger ATC
High performance spindle C axis
Inner Dimensions |
850 x 600 x 350 |
Workplace Dimensions |
800 x 500 x 250 |
Axis Movement |
400 x 300 x 300 |
Minimum drive unit |
0.05μm |
Minimum command value |
0.10μm |
Maximum electrode mass |
50kg |
Machining Current |
60A (FP60) |
main body dimensions |
1740 x 1960 x 2265 |
